Product Details
Place of Origin: china
Brand Name: Adia
Certification: RoHS
Model Number: YT269BHD002
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: USD 19-20/ PCS
Packaging Details: 50cm*50cm*60cm
Delivery Time: 20-25
Supply Ability: 1k/m
Type:: |
TFT LCD Display |
Supplier Type:: |
Manufacturer |
Display Size:: |
2.69inch |
Display Type: |
Normally Black，Transmissive |
Resolution:: |
RGB1280*720 |
Interface:: |
SPI+LVDS |
Viewing Angle:: |
IPS Full View Angle |
Driver IC:: |
SC5014 |
Contrast Ratio:: |
1000:1 |
Application: |
For Projector |
Type:: |
TFT LCD Display |
Supplier Type:: |
Manufacturer |
Display Size:: |
2.69inch |
Display Type: |
Normally Black，Transmissive |
Resolution:: |
RGB1280*720 |
Interface:: |
SPI+LVDS |
Viewing Angle:: |
IPS Full View Angle |
Driver IC:: |
SC5014 |
Contrast Ratio:: |
1000:1 |
Application: |
For Projector |

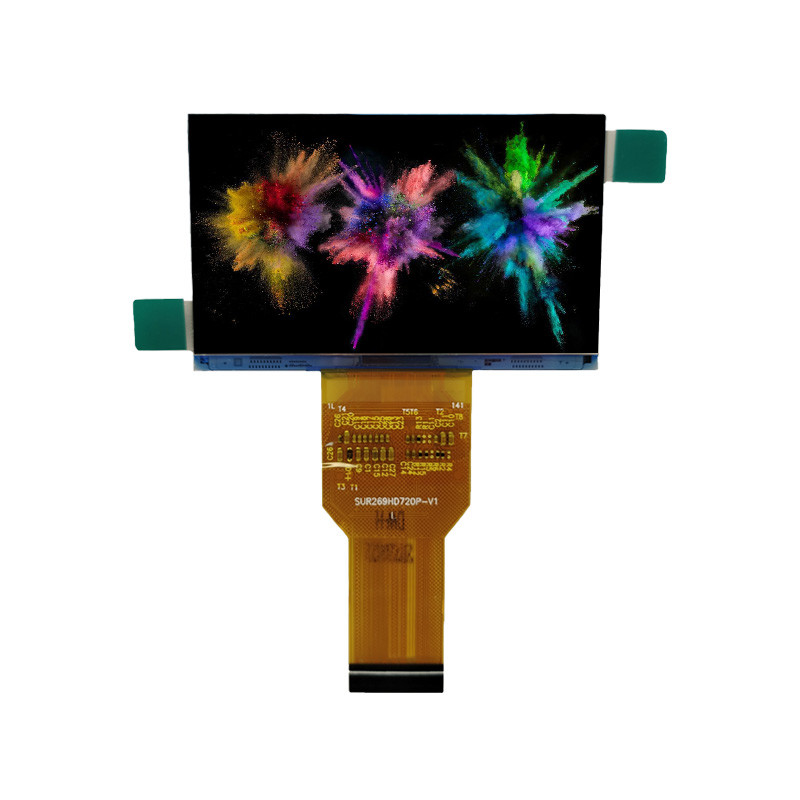

2.69inch 1280 * 720 Projector TFT LCD Screen FOG Panel No Backlight
2.69 inch 1280 * 720 projector LCD FOG panel no backlight high-definition IPS TFT LCD screen panel LVDS 30 pin projector
Product Overview
General Specifications
|
No.
|
Item | Specification | Unit | Remark |
| 1 | LCD Size | 2.69 | inch | - |
| 2 | Panel Type | IPS type LCD screen (module) | - | - |
| 3 | Resolution | 1280RGB*720 | pixel | - |
| 4 | Display Mode | Normally Black,Transmissive | - | - |
| 5 | Display Number of Colors | 16.7M | - | - |
| 6 | Viewing Direction | All | - | Note |
| 7 | Contrast Ratio | 1000:1 | - | - |
| 8 | response time | 30 | ms | - |
| 9 | Module Size |
63.0(W ) x 38.97(H)x1.25(D)
|
mm | Note |
| 10 | Active Area | 59.52(W) x 33.48(H) | mm | Note |
| 11 | Pixel Pitch | 0.045(H) x 0.045(V) | mm | - |
| 12 | Weight | TBD(TYP) | g | - |
| 13 | LCD Driver IC | SC5014 | - | - |
| 14 | Color arrangement | RGB stripe | - | - |
| 15 | pin count | 30 | - | - |
| 16 | Interface | SPI+LVDS | - | - |
| 17 | Operating Temperature | -20~80 | ℃ | - |
| 18 | Storage Temperature | -30~80 | ℃ | - |
Product Details
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
